Stainless Steel Metal Hose

Heavy-Duty Solutions

Application

For use with petroleum, chemical, steel, and power generation plants. Can also be used in heating, pump, ventilation, and air conditioning systems. It is designed for hot or cold media transfers, such as hot oil and lube oil transfers. Can also be used for jump lines and loading arms or terminal loading/off loading products.

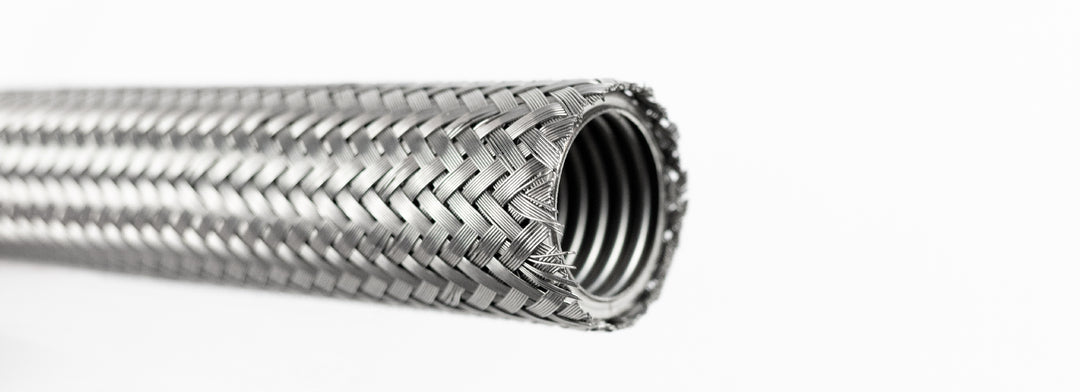

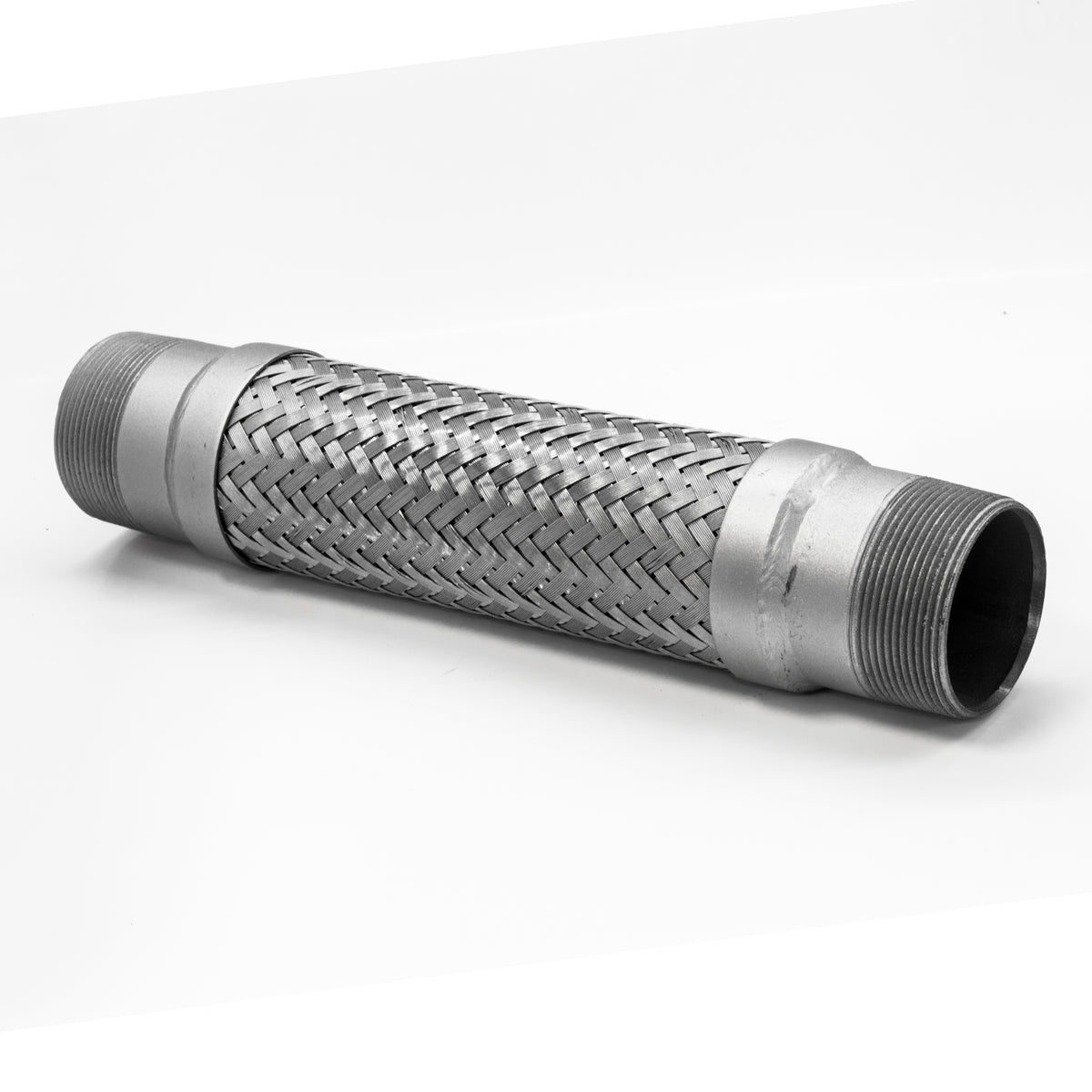

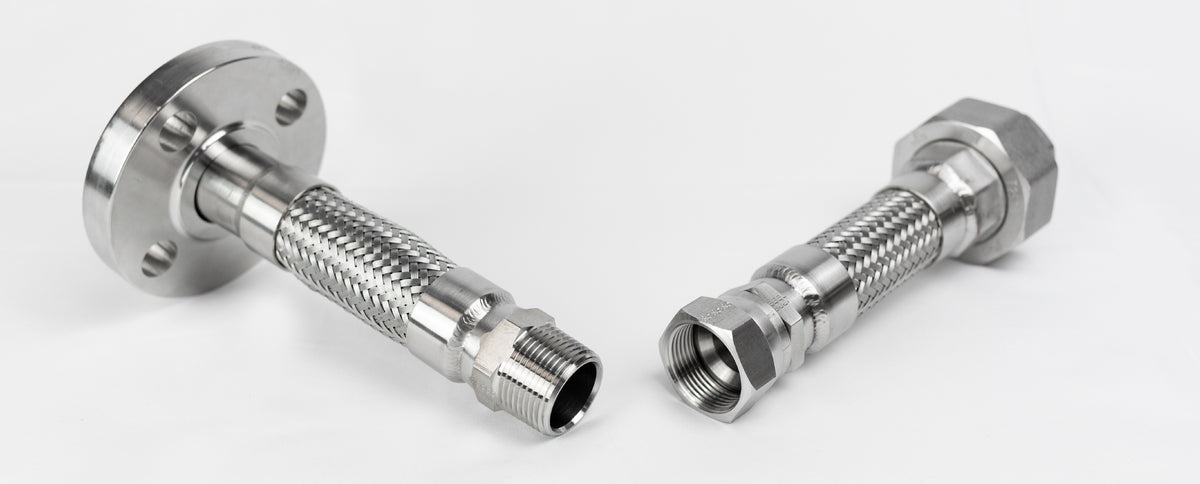

Single and Double Braid Metal Hose Specifications

Construction:

Tube - 316 corrugated stainless steel
Reinforcement - 304 stainless steel single and double braid
Ends - 316 stainless steel fixed x floating 150# flanges
Characteristics - Lightweight and moderate flexibility
Temperature Range: -267°C to +648°C (-450°F to +1200°F)
