Gates Data Master

Heavy-Duty Solutions for High-Density Performance

Data Master Cooling Hose

Engineered to efficiently circulate coolant, the Gates Data Master Cooling Hose keeps your data center operational in the toughest conditions.

Its metal-free peroxide-cured EPDM cover offers the best compatibility with PG25 and other deionized water glycol coolant mixes to avoid fluid contamination and keep your servers running at maximum performance.

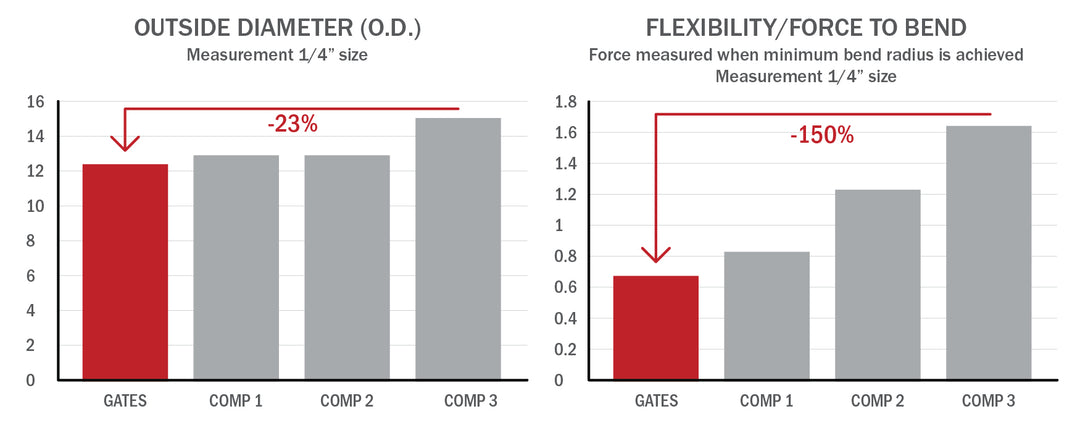

Our hoses are specially designed to have a narrow profile (diameter) while using Gates special manufacturing techniques to make them flexible for easy connection.

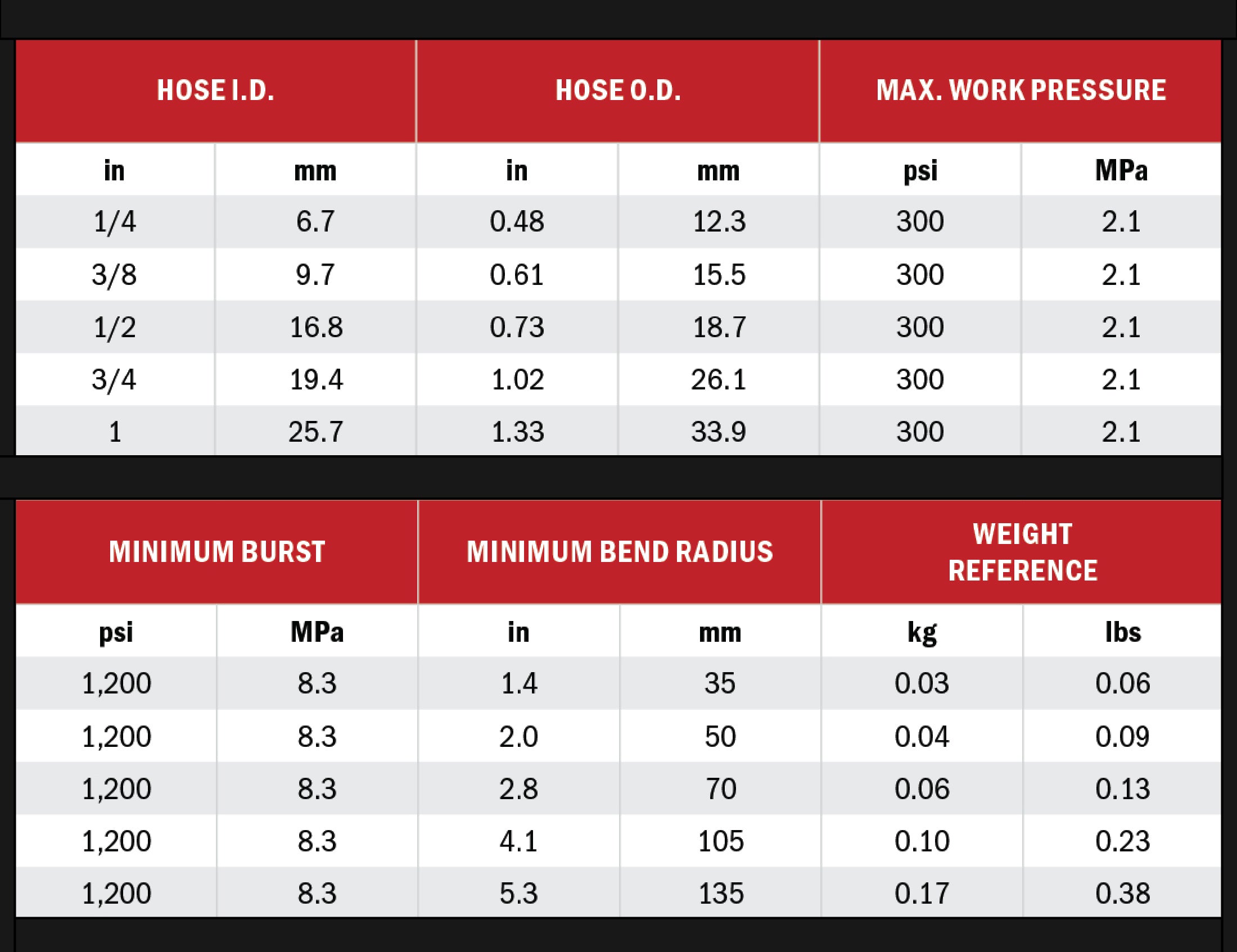

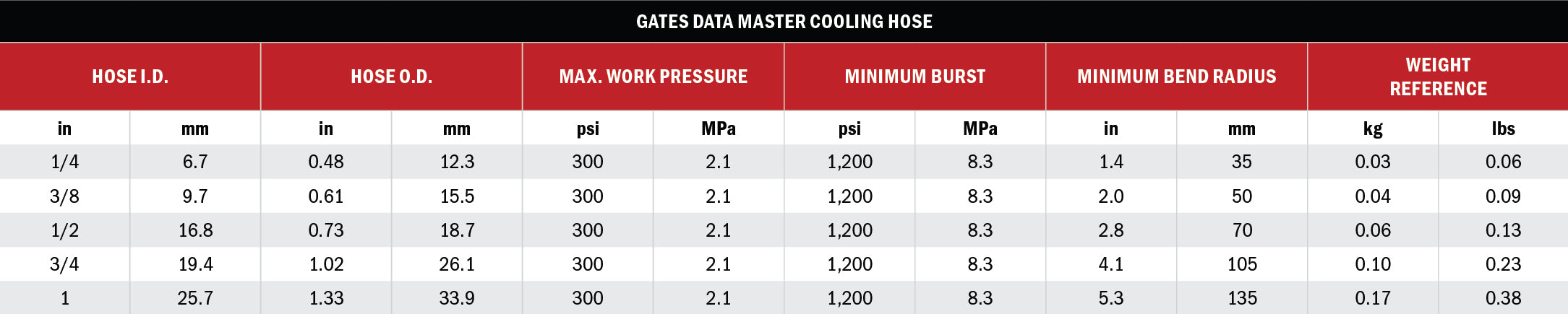

Specifications

  • Metal-Free, Peroxide-Cured EPDM Tube, Synthetic fiber braid reinforcement, and flame-resistant EPDM cover
  • Wide temperature range: -40°F to +212°F (-40°C to +100°C)

Compatible with:

  • Push-Lock or Lock-on style fittings
  • Crimped: GLX & SS
  • Clamped: Hose bead with clamp (less than hose rated working pressure, do not use clamps with Lock–On fittings)
Clean, Easy , Reliable

Data Master Data Center Cooling Hose

Ideal in multiple applications:

  • Chilled water systems
  • Crac or Crah units
  • Direct to chip water cooling
  • Liquid immersion cooling systems
  • In-row and in-rack cooling systems

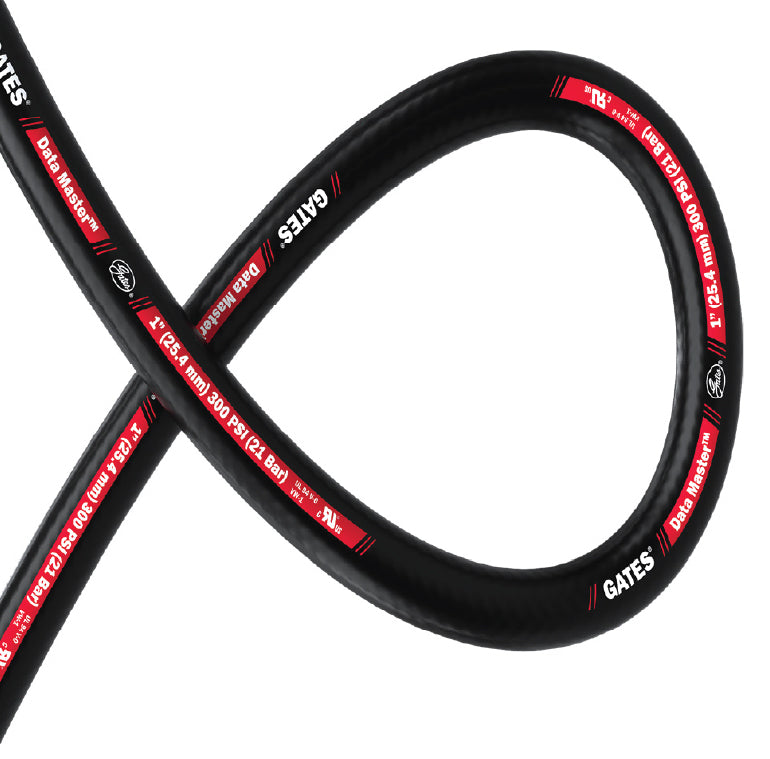

Slimmer hoses and flexibility are critical when installing in tight areas and our data center cooling hose has you covered.

Cooling at the speed of innovation
